agentshield-dev/agentshield

Agentshield finds evidence-backed lateral-movement paths and risky security changes in Kubernetes environments that run Istio ambient mesh, Cilium, and agentgateway, and in AWS. It builds one graph of your workloads, identities, network policies, and observed traffic, flags changes that open new paths or remove protection, has a language model investigate them against the graph, and proposes fixes that a person must approve before anything changes.

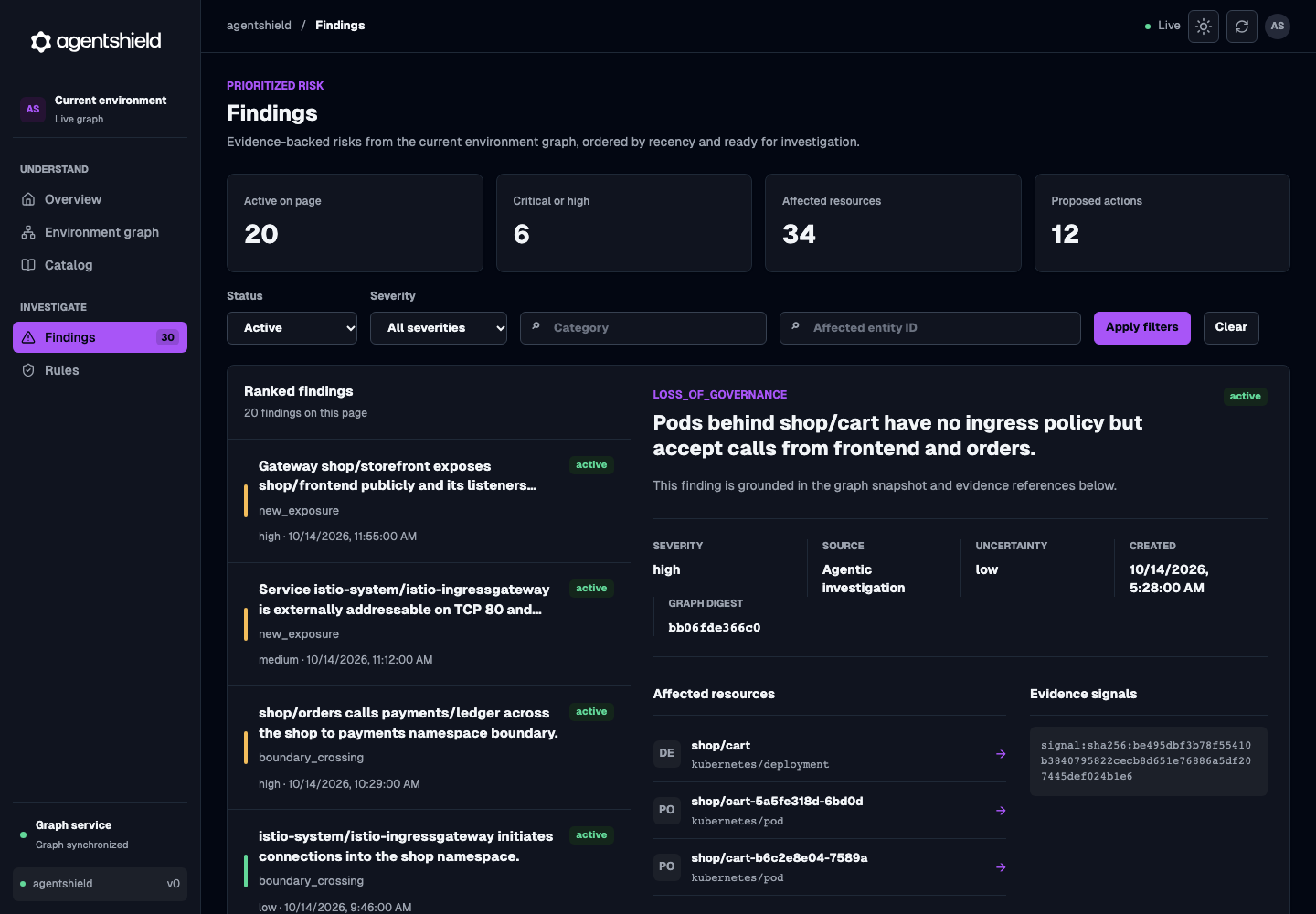

Finding details, evidence, and proposed remediations, shown with synthetic demo data.

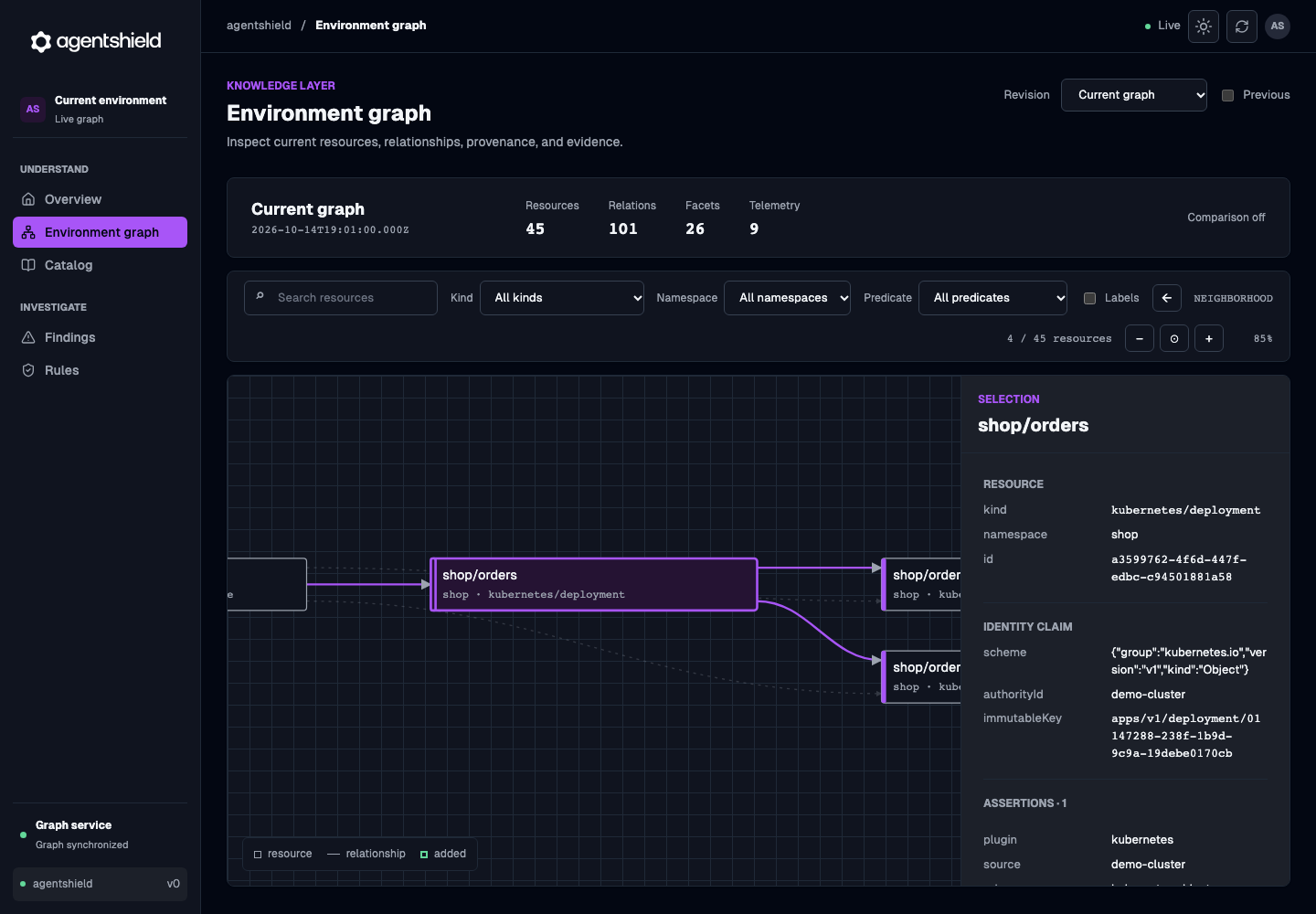

A selected workload and its relationships in the environment graph.

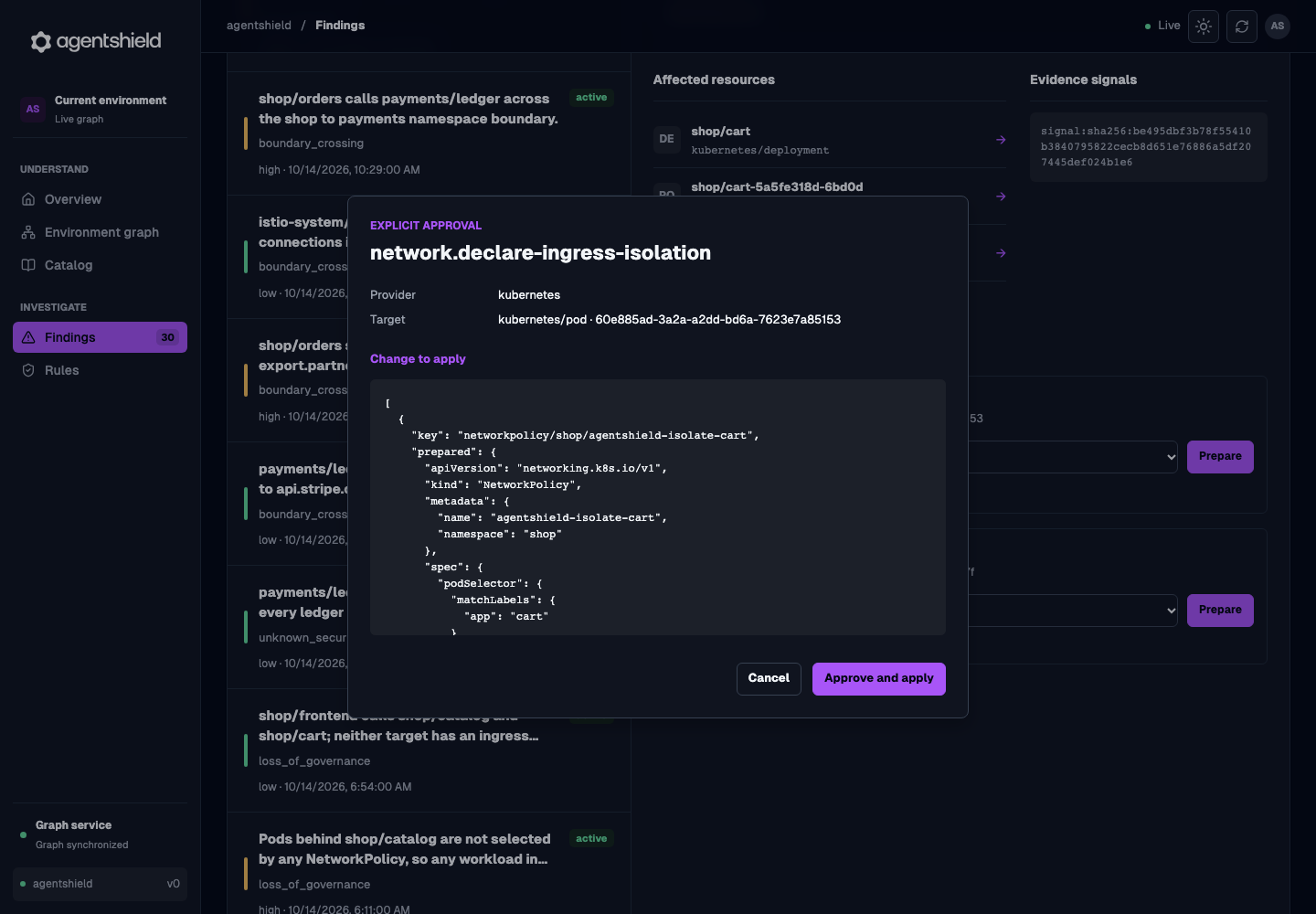

The approval step displays the exact change before it is applied.

The web UI ships with an interactive playground that runs the real UI against a fake in-browser backend. It needs only make, Node.js 22.23.4, 24.22.1, or 26.12.1 or later on their release lines (ui/.nvmrc pins 24), and pnpm 11 (corepack enable provides it). No Go, database, cluster, or model.

git clone https://github.com/agentshield-dev/agentshield.git
cd agentshield
make demo

Open http://127.0.0.1:5173. Choose a scenario, trigger its observation, and prepare and approve the proposed remediation. Reset restores the clean environment. The first run spends most of its time on pnpm install, and everything stays in your browser. More in Getting started.

Who can reach what in a modern cluster is spread across NetworkPolicies, CiliumNetworkPolicies, Istio AuthorizationPolicies and PeerAuthentications, Gateway API routes, and cloud Security Groups. Attackers moving laterally use ordinary-looking traffic and ordinary-looking configuration changes. No single tool joins these sources and asks, on every change: did this just open a path that was not there before, and what evidence says so? agentshield is built to answer that.

It is for platform and security engineers running Kubernetes with Istio ambient, Cilium, or agentgateway (optionally on AWS), and for contributors who want to add providers, detectors, or evaluation scenarios.

• Discovers your environment into one graph:
  • Kubernetes: workloads, Pods, Services, ServiceAccounts, Nodes, RBAC, admission configuration, NetworkPolicies, Ingress, and Gateway API, through one shared informer per resource type.
  • Istio: AuthorizationPolicy, PeerAuthentication, ambient enrollment, waypoints, ServiceEntry, VirtualService.
  • Cilium: CiliumNetworkPolicy, CiliumClusterwideNetworkPolicy, CiliumEndpoint, CiliumNode.
  • agentgateway: Gateway API resources managed by agentgateway.
  • AWS: EC2 instances, ENIs, and Security Groups, with optional CloudTrail change events through EventBridge and SQS.
• Records where every fact came from. Each resource has a stable identity (for example, cluster ID plus Kubernetes UID), and each fact records the plugin, rule, and observation that produced it. The graph is stored in PostgreSQL as versioned, atomically replaced contributions with an ordered change feed.
• Ingests traffic telemetry: Istio waypoint access logs over OTLP/HTTP and AWS VPC Flow Logs through Firehose. Raw events go to JSONL or ClickHouse; per-minute summaries and communicates-with edges go into the graph. Istio logs need a custom envoyOtelAls extension provider that emits agentshield.* attributes; the example labels every caller as a Deployment, so traffic from other workload kinds is rejected. See Istio telemetry.
• Detects risky changes. Built-in detectors look for new exposure, lost governance, changed policy, new RBAC bindings, and workloads reaching destinations they never reached before, while ignoring rollouts and scaling. You can add versioned CEL rules with audited activation and hot reload, and have a model draft a rule for each new Deployment (shadow mode until you approve it). Active rule matches become findings without a model call.
• Investigates with a model. A model looks into each signal through six read-only MCP graph tools. Agentshield accepts a finding only if it cites facts and evidence the graph actually returned, and invalidates it when those resources change.
• Proposes fixes behind an approval gate. Findings can suggest a Kubernetes NetworkPolicy, CiliumNetworkPolicy, or Istio STRICT PeerAuthentication. A person prepares (plans and dry-runs) and approves each one, and agentshield verifies the result.
• Serves a web UI and HTTP API from the same binary.

Detection itself never calls a model. It runs whenever one of the two model-calling features is enabled, and nothing calls a model unless you enable it:

When detection runs, a match of an active rule (an operator-activated CEL rule or an approved Deployment rule) becomes a finding directly, with no model call. Built-in novelty signals become findings only through agentic investigation, which records a finding only when the model's answer passes validation: it must cite facts and evidence the graph returned, including at least one medium-or-higher-risk signal. Agentic investigation drains its own durable queue, so a slow or failing model never delays detection. Batching, sampling, deduplication, and an hourly budget bound its spend; see Change feed and reasoning.

Without either feature you still get discovery, the graph and its change history, telemetry ingestion and rollups, and the HTTP API and UI for browsing resources, relationships, and sources. You get no findings, and so no remediation proposals, because proposals are attached to findings.

Graph data is sent to the model endpoint; see the security model. Telemetry detection rules currently run only when a graph change opens a detection window; see Detection rules.

Agentshield is an early, pre-1.0 project. Expect breaking changes to APIs, the database schema, and flags.

• The HTTP API and UI have no authentication, so the server binds to 127.0.0.1:8088 by default; read the security model before changing that.
• One process per database; no high availability.
• Tagged releases publish binaries on GitHub. Build a container image from the Dockerfile and deploy it with the Helm chart; no container image is published yet.
• Hubble flow and agentgateway access-log normalizers exist, but no transport feeds them yet. Today's telemetry sources are Istio waypoint access logs (via OpenTelemetry) and AWS VPC Flow Logs (via Firehose).

1. Source plugins (kubernetes, aws) watch provider APIs; semantic plugins (istio, cilium, agentgateway) read the same watches and add meaning.
2. Each plugin publishes its complete current output as a contribution to PostgreSQL, which keeps the current graph and an ordered change feed.
3. Telemetry (OTLP logs, VPC Flow Logs) goes to a raw sink (JSONL or ClickHouse) first; per-minute summaries then join the graph.
4. Detectors turn graph changes into signals, a model investigates each signal through read-only graph tools, and only answers that cite real graph evidence become findings.
5. A finding can propose a fix, which runs only after a person prepares and approves it.

The pipeline diagram shows this flow. More detail: What agentshield does and the architecture overview.

There are no published results yet. The evidence today is the evaluation suite: six campaigns, run against a disposable kind cluster with Cilium, Istio ambient, and agentgateway. They come in three attack/benign pairs, one per threat model:

• a compromised checkout service reading a payment signing key from a secrets manager, against a governed secret-rotation controller;
• a compromised ML workspace build worker reading workspace secrets, against the governed workspace secrets controller;
• a compromised single sign-on server enumerating private repositories, against a governed repository-inventory controller.

Each campaign generates real traffic in the cluster and waits until the plugin-produced observation reaches the graph before scoring; the expected outcome is never shown to the model. An attack campaign counts as a true positive if it produces a promoted finding, and a benign campaign counts as a true negative if it produces none. Each campaign report also records whether the finding category matched. A complete run reports security recall and benign specificity in summary.json, along with token usage and model latency. Six campaigns are a smoke test of the end-to-end path, not a measure of detection rates in general.

To reproduce, run make eval-up, make eval-check, and make eval-run. The run makes real, billed model calls; the evaluation guide has the requirements and the output format.

A separate rule suite (make eval-rules) scores detection rules on nine campaigns built for them, each attack paired with benign controls. It scores operator rule policies, which need no model, and the rules the Deployment rule author drafts. See rule evals.

You need:

• Go 1.27 or later (go.mod)
• Docker with Compose v2, for PostgreSQL 16 and kind
• kind and kubectl, or any Kubernetes 1.30+ cluster in your current kubectl context
• To build the web UI: Node.js 24 (ui/.nvmrc; ui/package.json accepts 22.23.4, 24.22.1, or 26.12.1 or later on their release lines) and pnpm 11 (packageManager in ui/package.json). pnpm installs TypeScript and Vite. Skip the UI with make run UI=0.

kind create cluster --name agentshield-demo

export POSTGRES_PASSWORD='development-only-password'
make postgres-up    # returns once PostgreSQL is healthy
export AGENTSHIELD_DATABASE_URL="postgres://agentshield:${POSTGRES_PASSWORD}@127.0.0.1:5432/agentshield?sslmode=disable"

make run    # discovers the current kubectl context

Open http://127.0.0.1:8088 to browse the cluster graph. To get findings, also set AGENTSHIELD_MODEL_ENDPOINT=https://api.openai.com, OPENAI_API_KEY, and AGENTSHIELD_AGENTIC_INVESTIGATION=true (and optionally AGENTSHIELD_DEPLOYMENT_RULE_AUTHORING=true) before make run (see What needs a model).

Discovery only reads, but make run enables live remediation with your kubectl credentials, so a fix you approve in the UI is applied to the cluster. Use a read-only context if you only want to look.

Getting started covers this path in detail and a full evaluation cluster with Cilium, Istio ambient, and agentgateway (make eval-up).

Run make docs-reference to generate the complete code-backed reference set. See Generated reference docs for coverage, local website updates, and the website workflow that opens update PRs.

Start with the documentation index. Common destinations:

• Getting started
• Glossary and data model
• Architecture overview
• Writing a plugin
• Configuration and Helm deployment
• Testing

See Contributing for setup, design docs, and testing.

For vulnerabilities, follow the private reporting guidance in Security policy.

Apache License 2.0. See LICENSE.
